Separate type (GSR) linear rail

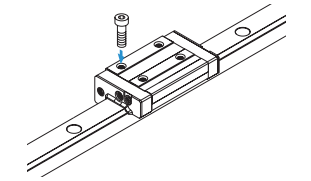

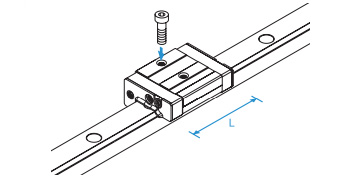

                                                                                            GSR-T型                                                          GSR-V型

Structure and features

The steel ball rolls along the LM track and the LM along the 2 rows of rolling surfaces that have been precisely ground; the end cover on the LM allows the LM steel to select a cutting plate to keep the steel ball, so the steel ball will not fall off.

Due to the inclination of the top surface of the LM, the LM fixed with the equipment may simply be removed to obtain a proper preload.

The GSR-R type is equipped with a rack on the LM rail used for the GSR type, which facilitates the design and installation of the drive mechanism.

GSR-R type cannot be used in single axis.
